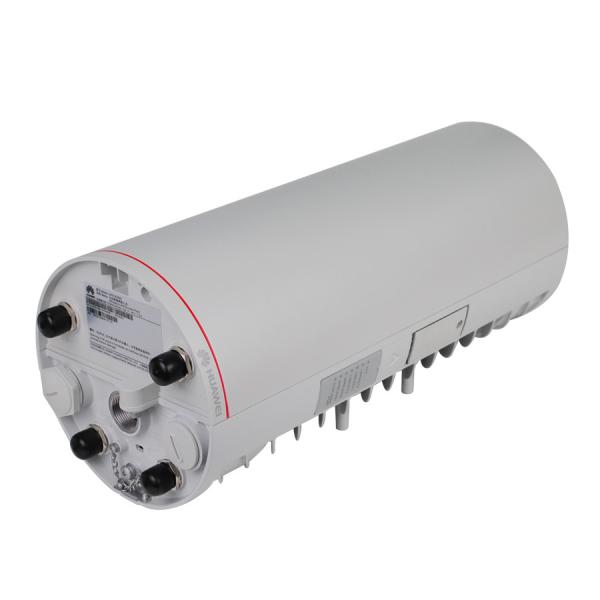

Wifi 802.11 Ac Wave 2 WLAN Device AP8182DN Outdoor Wifi Access Point

Brand Name : HUAWEI

Model Number : AP8182DN

Place of Origin : China

MOQ : 1

Price : $400-800 pcs Negotiable

Payment Terms : T/T

Supply Ability : 100/pcs/week

Delivery Time : 5-8 working days

Packaging Details : Carton Packaging

Power Input : PoE power supply: In compliance with IEEE 802.3at/bt; only the 2.5G/5G port supports PoE input

Maximum Power Consumption : 802.3bt power supply: 45W (excluding the output power of the PoE OUT port) 802.3at power supply: 25.5W (the PoE OUT function and GE/POE OUT ports are unavailable, 5 GE and SFP are mutually exclusive)

Operating Temperature : –40°C to 65°C

Antenna Type : AP8082DN: Built-in directional antennas (horizontal 60°, vertical 30°) AP8182DN: External antennas (with eight type N connectors)

MIMO: Spatial Streams : 4 x 4:4

Maximum Number of Users : ≤ 512

Contact Now

HUAWEI 802.11ac Wave 2 Outdoor Access Point AP8182DN Original new Built-in wireless access point outdoor AP

AP8082DN & AP8182DN Access Points

The latest 802.11ac Wave 2 outdoor Access Points (APs). These APs support 4 x 4 MU-MIMO and four spatial streams. With excellent outdoor coverage and ruggedized hardware, they are suited to high-density environments including stadiums and parks.
802.11ac Wave 2

Supporting 4SU-4MU (MU-MIMO), and providing a maximum rate of 2.53 Gbit/s or 3.46 Gbit/s when working in dual-5G mode.

Industrial-Grade

Including 5 kA surge protection on antenna ports to simplify installation and 6 kA or 6 kV surge protection on Ethernet interfaces. These industrial-grade APs feature IP68-rated and are submersible in water.

IoT Convergence

Featuring PoE OUT and possible extension with cameras and IoT protocols such as RFID and ZigBee.

Specifications

Specifications AP8082DN & AP8182DN
Dimensions (Length x Diameter) 387 mm x φ165 mm
Power Input PoE power supply: In compliance with IEEE 802.3at/bt; only the 2.5G/5G port supports PoE input
Maximum Power Consumption 802.3bt power supply: 45W (excluding the output power of the PoE OUT port)
802.3at power supply: 25.5W (the PoE OUT function and GE/POE OUT ports are unavailable, 5 GE and SFP are mutually exclusive)

Notes: The actual maximum power consumption depends on local laws and regulations. In 802.3at power supply mode, the radio power is reduced, and the 2.4 GHz radio frequency works in 2 x 4 MIMO mode
Operating Temperature –40°C to 65°C
Antenna Type AP8082DN: Built-in directional antennas (horizontal 60°, vertical 30°)
AP8182DN: External antennas (with eight type N connectors)
Maximum Number of Concurrent Users ≤ 512
Maximum Transmit Power AP8082DN: 2.4G: 29 dBm (combined power) 5G: 28 dBm (combined power)
AP8182DN: 2.4G: 28 dBm (combined power) 5G: 27 dBm (combined power)

Note: The actual transmit power depends on local laws and regulations
MIMO: Spatial Streams 4 x 4:4
Radio Protocols 802.11a/b/g/n/ac/ac Wave 2
Maximum Rate AP8082DN: 2.53 Gbit/s
AP8182DN: 3.46 Gbit/s

Wifi 802.11 Ac Wave 2 WLAN Device AP8182DN Outdoor Wifi Access Point

Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
